Detailed Description:
Powertrain and Motors

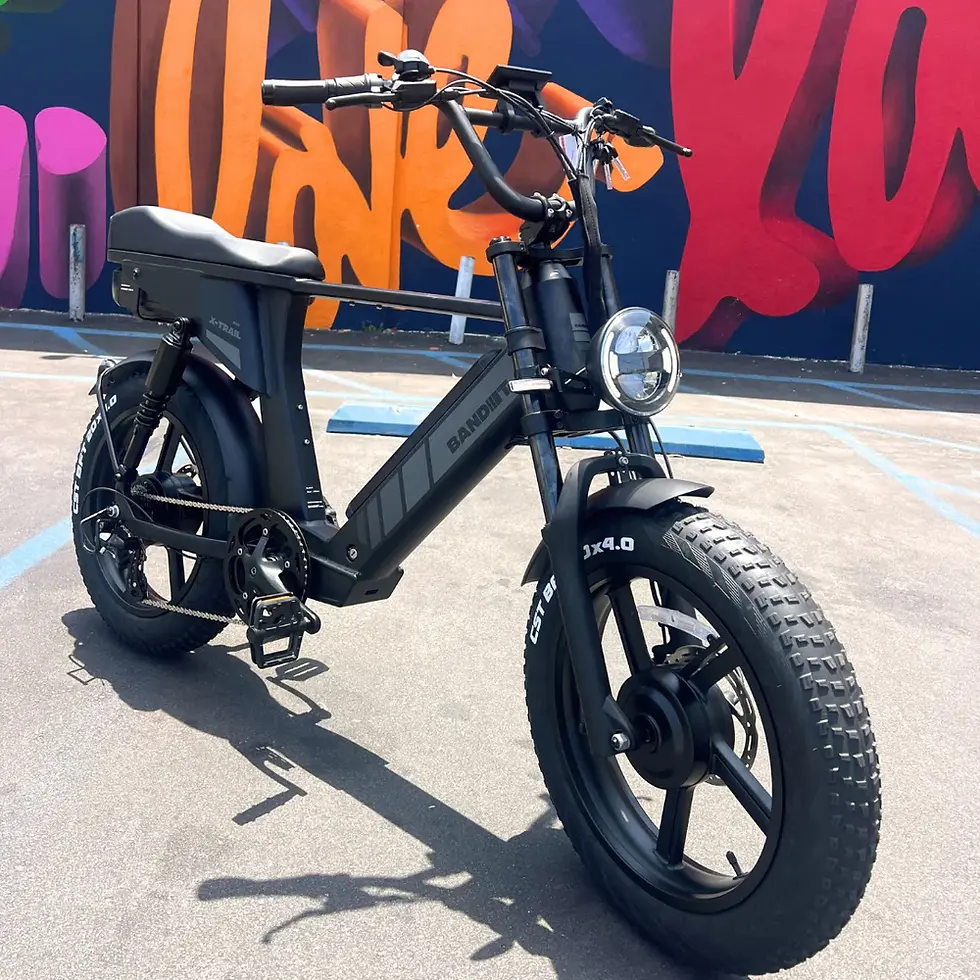

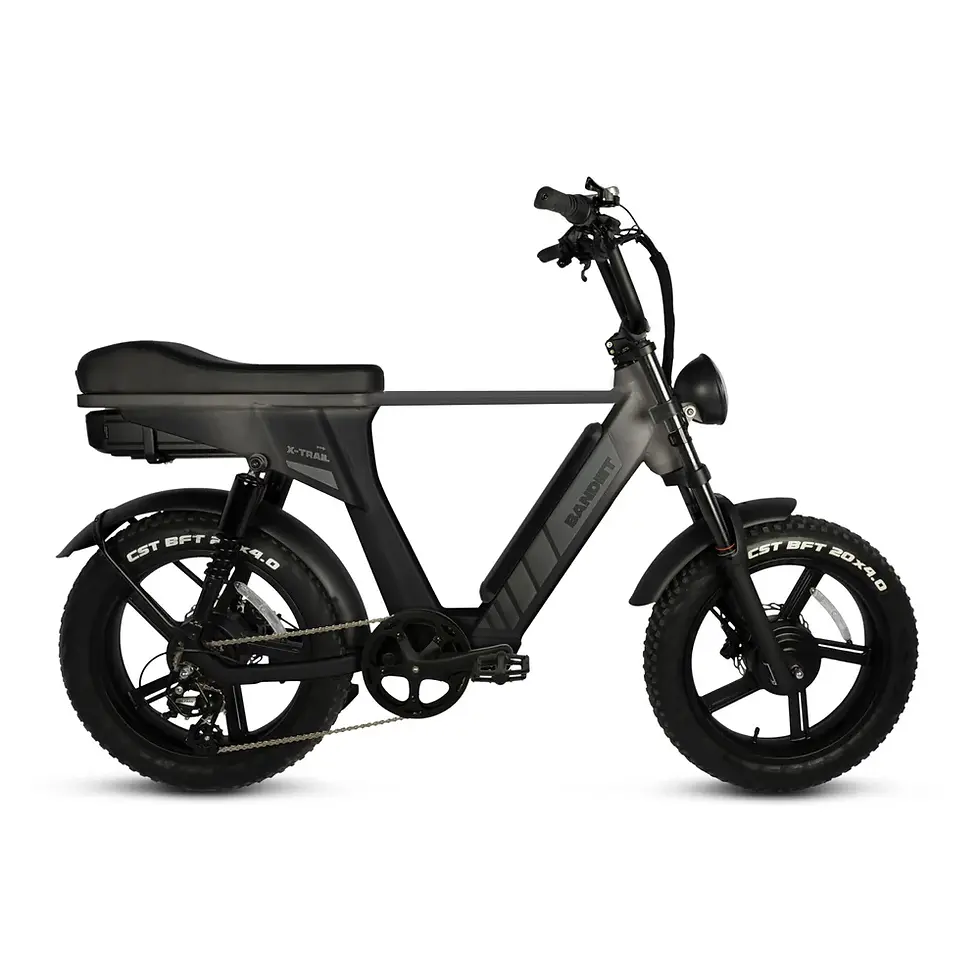

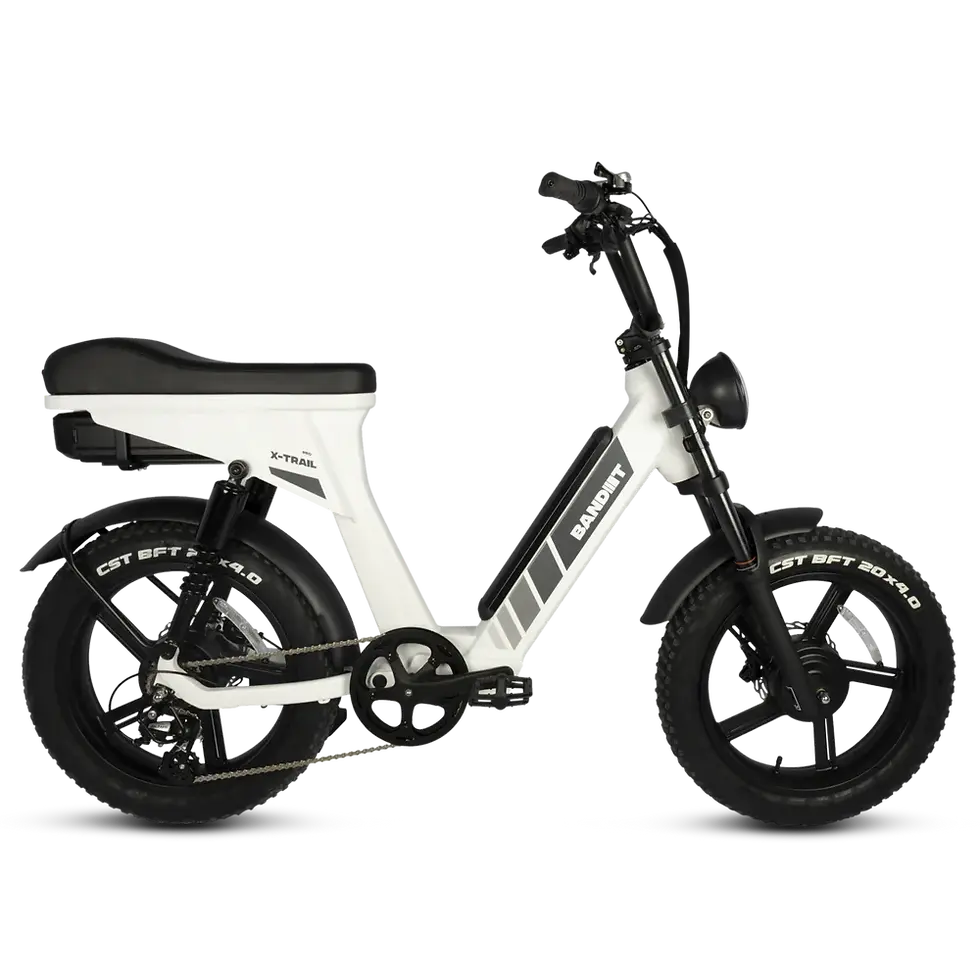

This electric bike features a dual-motor system: a 750W hub motor in the front and a 1,000W hub motor in the rear. The combined output reaches 1,750W, delivering high torque and acceleration. This setup allows the bike to reach top speeds of 38 to 42+ mph, depending on rider weight and terrain conditions. A half-twist throttle provides direct control over power, while a cadence-based pedal assist system with seven adjustable levels supports efficient pedaling.
Battery and Range
Equipped with two removable lithium-ion batteries (48V 20Ah each), the bike provides a total energy capacity of 1,920Wh. These batteries support a maximum estimated range of over 120 miles on a full charge under ideal conditions. Charging is accomplished in approximately five hours using the included 48V 3A charger.
Frame and Geometry
The frame is constructed from 6061 aluminum alloy, offering a balance of durability and relatively low weight. The bike is available in both low-step and high-step configurations, accommodating a wide range of rider heights from approximately 4'11" to 6'5". Its design resembles that of a compact moped, optimized for urban and mixed-surface travel.
Suspension and Wheels
To ensure comfort and control across varied terrain, the bike includes a hydraulic front suspension fork and dual rear spring shocks. It rides on 20" x 4" CST fat tires, which are puncture-resistant and provide stability on pavement, gravel, and light off-road trails.
Braking and Safety
Braking is managed by four-piston hydraulic disc brakes with 180mm rotors front and rear, offering strong and consistent stopping power. The lighting system includes a waterproof LED headlamp and integrated rear lights with turn signals. Additional safety features include an NFC card-based locking system and a digital passcode option for secure access.
Controls and Interface
A horizontal LCD color display provides real-time ride data and includes USB ports for device charging. Control elements such as pedal assist adjustment and lighting are integrated into the handlebar setup. The handlebars have a BMX-style shape, designed for a blend of stability and maneuverability.
Comfort and Utility
A wide, padded nylon saddle offers a comfortable seating position for longer rides. The frame supports accessory mounts for added utility if desired, though it is primarily designed for direct ride use without extra attachments.
